TOP quality light gauge steel frame metal stud roll forming steel framing machine
Product Description
BOSJ Equipment Parameters
Detail Tools of C89 light guage steel framing machine
(1).Lip Notch;
(2).Web Notch;
(3).Swage;
(4).Service Hole;
(5).Dimple Hole;
(6).Blot Hole;
C89 Roll forming machine
| Name | Details | Remarks |
| Dimension | 4800x1200x700mm | |
| Weight | 3 T | |
| Colour | Customized | |
| Main motor | 7.5 KW Servo motor | Taiwan Delta |
| Transmission | Gear transmission + chain drive | |
| Forming Mould | Cr12Mov After CNC machining, vacuum heat treatment to HRC56-62 | |
| Main axis | 40Cr Heat treatment after NC machining to HRC28-32, then polishing, polishing and electroplating. | |
| Speed | 40m/min(without punching and cutting) | |
| Production capacity | 6-8 tons/h (Overall speed to make the whole house) | |
| Tolerance | punching and cutting: ± 0.5mm forming: ±0.75mm | Avoid stretching magnification errors during forming |
How to Install
1. Assemble light steel keels piece by piece(according to numbers and drawings)
2. Combined all parts together(chassis, wall, floor beam, roof, etc)
3. Install the exterior wall
4. Complete the windows, doors and cornice with trim and flashing
5. Fix the exterior corner
- Smart Internet connectivity provides cloud-based data reporting to enable real time production management and technical diagnostics to improve efficiency.
- Advanced hydraulic and punching functions for high productivity and versatile components production such as trusses, walls and joists.
- An auto gauging system that automatically adjusts gauge range to increase overall productivity for steel thickness from 0.6 -1.2 mm.

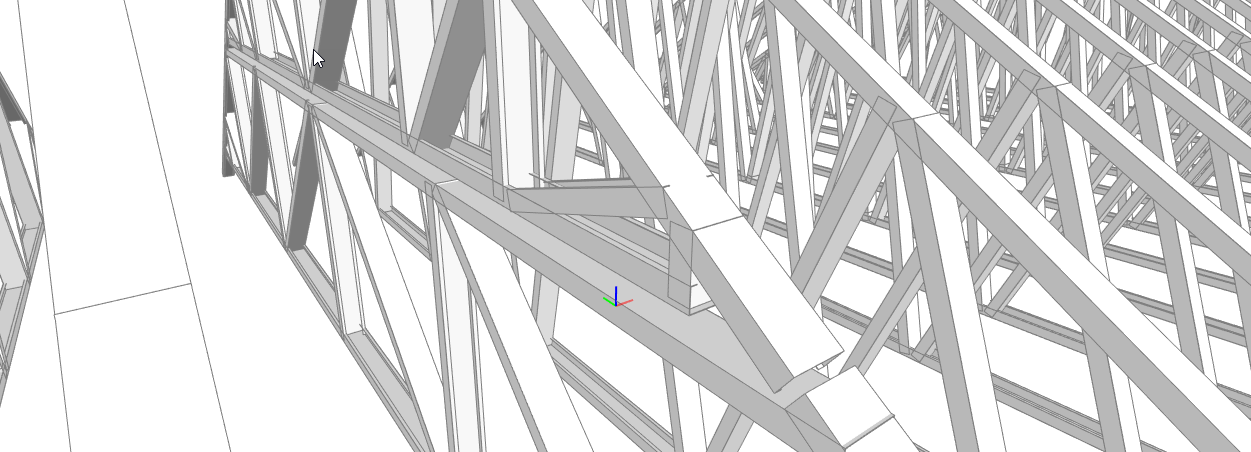

Vertex BD Software
