Shelf Upright Roll Forming Machine
Machine specification(All parameter can be design as clients requirement)
1. suitable raw material:PPGI or colored steel
2. material thickness:0.3-0.8mm
3. roller material:high grade 45# Steel, quenched and heated process, surface with 0.05mm hard chrome
4. shaft material:Shaft Material: High Grade 45# steel, Heated and quenched HRC 45-50
5. shaft diameter:76mm
6. Material of Rack: complete welded structure of A3 steel plate 18mm thickness
7. Material Of Blade: Cr12 with polished, heat treatment and quenched HRC 60-62
8. Main power:7.5kw
9. Main axles material: High Grade 45# steel
10 .Machine Frame stand: welded with 36 # I-steel
Product: Shelf column, Shelf crossbeam, Shelf stay rod, Shelf plywood etc.
Advantages of Heavy Duty Pallet Racking .
1.It is suitable to be used in factories, manufactures and warehouse
2.Size(L*W*H): 1200/1500/2000*450/600/1000*1800/2000/2500mm
3.Perfect for storing categorized products in a neat and tidy way
4.heavy-duty shelf set for warehouse shelving
5.Strong structure,special desigin for the total fucntion
6.Easy installation
7.Customization is acceptable
8.High Working Efficiency
9.Long-Service Lifespan
Determinant of Heavy Duty Pallet Racking design
1. The weight of your goods (trays, steel containers / boxes are included)
2. The dimension of your goods together with pallets ( Length Width Height )
3. The maximum height of your forklift and the available height of your warehouse
4. The dimension of your forklift,if you have,please offer us,we will consider this fact.
5. The fork direction,if you have,please offer us,we will consider this fact.
6. The dimension of your warehouse
7. The path of the transportation
Equipment capacity:
1, Equipment production capacity: width≤400mm, thickness of steel material: 1-2.5mm
2, Production speed: 8-15m/min
3, Total power: about 21.5kw
Structure of Heavy Duty Pallet Racking.
Beams
Horizontal bracing
Diagonal bracing
Uprights
Screw, safe pins
Protector
Trays ,pallets ,or steel mesh plates

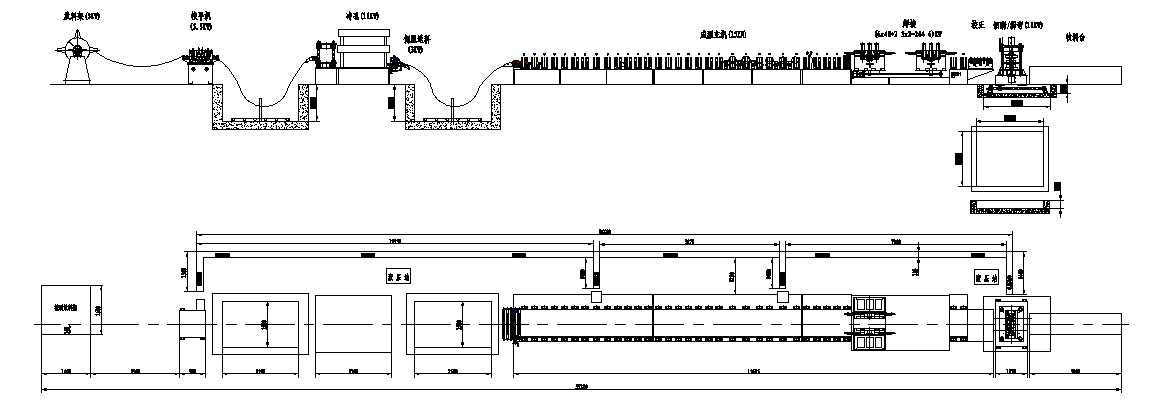

Main Machine Working Craft
| Main Accessories |
| 1 | Decoiler | 1 set |
| 2 | Main Forming Machine | 1 set |
| 3 | Correction System | 1 set |
| 4 | Hydraulic Station | 1 set |
| 5 | Auto-Cutting system | 1 set |
| 6 | PLC Control System | 1 set |
| 7 | Run Out Table | 1 set |
| Technical Datas roll forming machine |
| 1 | Material width | As your regards |
| 2 | The effective width | As your regards |
| 3 | The thickness of Coil | 1.0-3.0mm or more |
| 4 | Application | Warehouse system |
| 5 | The overall dimensions | 6800mmX1500mmX1300mm |
| 6 | Total weight | 5 Tons |
| 7 | Main Power | 5.5 KW |
| 8 | Uncoiler | Manual Uncoiler |
| 9 | Inner diameter | 508--610mm |
| 10 | Outer diameter | 1200mm |
| 11 | Loading weight | 3T |
| 12 | Forming speed | 5-10m/min |
| 13 | Forming steps | 12 stations or more |
| 14 | Bracket | welded with 36 # I-steel |
| 15 | Material of Shafts | 45# steel with rough finished and then refined finished |
| 16 | Diameter of the Roll | 76mm |
| 17 | Material of Rolls |
high quality 45#steel coated with hard chromium 0.05
mm |
18 | Processing Technology | rough processing ---refined processing--Hard Chromium Plating. |
| 19 | Material of Rack |
complete welded structure of A3 steel plate 16mm
thickness |
20 | Transmission | Transmitted by the chain-bracket/ Gearbox T180 |
| 21 | Material of Chain | 45#steel with heat treatment of HRC45-50° |
| 22 | Holders under chain for lubricant | By the machine |
| 23 | Material of cutting blade | Cr12 with quenched treatment 60-62 |
| 24 | Cutting system | Hydraulic cutting |
| 25 | Voltage | 380V/50HZ/3phase |
BOSJ offer you the full range warehouse system products,BOSJ has a profesional engineering and production team to work with you.
Product Tags:
|
|
Upright Shelf Frame Storage Rack Roll Forming Machine 7.5kw Galvanized Steel Q235 Images
|
